Script for Adobe Illustrator

ㅤ

Description

The Swatch Type Converter is a powerful Adobe Illustrator script that allows you to efficiently manage and convert color swatches between different types within your document. This tool provides a user-friendly interface to convert swatches between Global Colors, Spot Colors, and Solid Colors, or delete unwanted swatches entirely.

ㅤ

Features

• Convert to Global Colors: Transform swatches into global process colors that can be tinted
• Convert to Spot Colors: Convert swatches to spot colors for special printing inks
• Convert to Solid Colors: Convert swatches to regular process colors (non-global, non-spot)
• Delete Swatches: Remove multiple swatches from your document at once
• Search & Filter: Quickly find swatches by name using the built-in search bar
• Multi-Select: Select and convert multiple swatches simultaneously
• Group Preservation: Maintains swatch group organization after conversion
• Smart Handling: Automatically skips gradient and pattern swatches that cannot be converted
• Pre-Selection Support: Automatically selects swatches that were selected in the Swatches panel

ㅤ

ㅤ

Installation

1. Download the Swatch Type Converter.jsx script file.

2. Place the script in your Adobe Illustrator Scripts folder:

⮑ Mac: /Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts

⮑ Windows: C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts

3. Restart Adobe Illustrator if it's already running.

ㅤ

Launch the Script

1. Open your Illustrator document containing the swatches you want to convert.
2. Run the script via  File > Scripts > Swatch Type Converter.

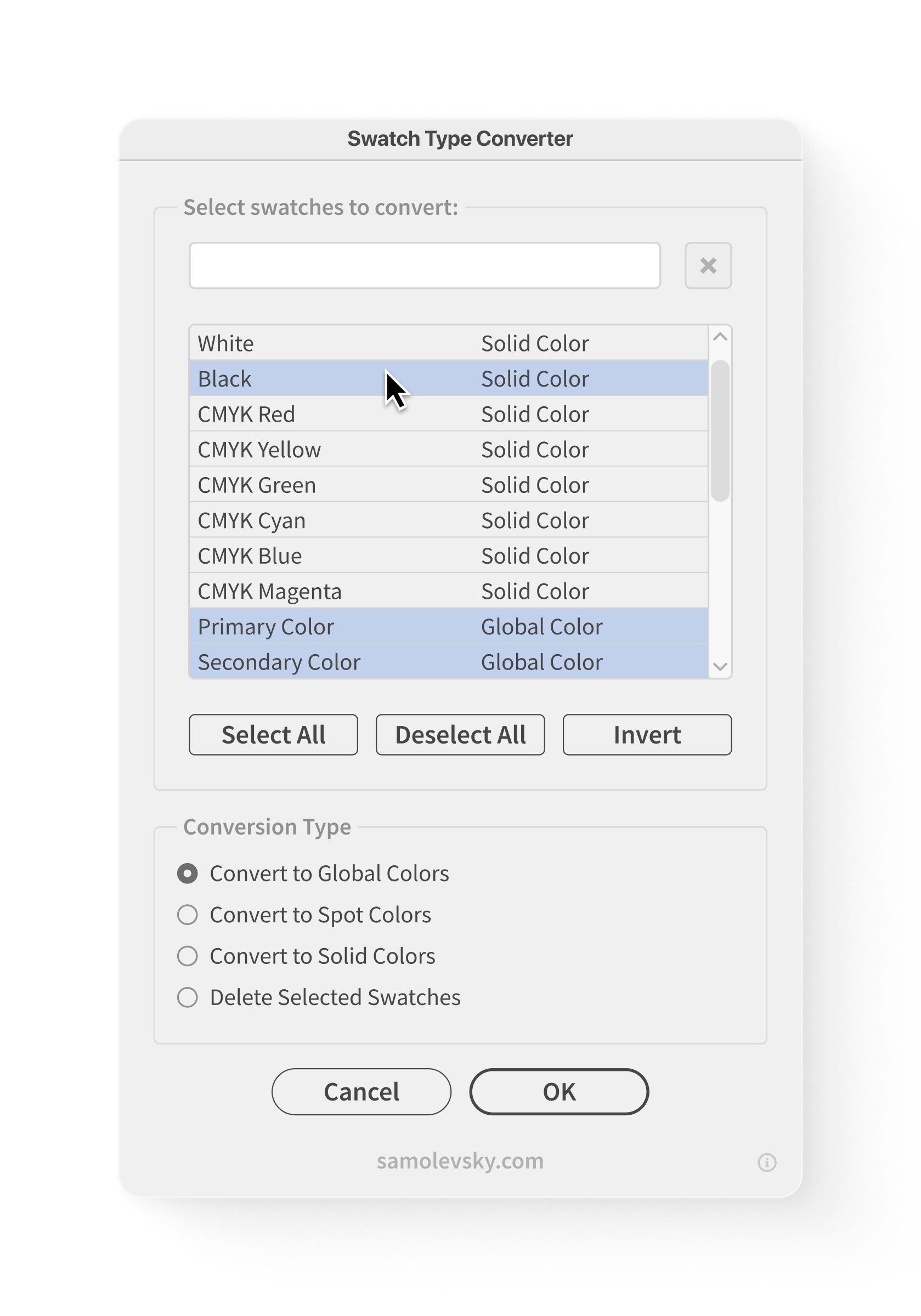

3. The Swatch Type Converter dialog window will appear.

ㅤ

ㅤ

Using the Script

ㅤ

➊ Select Swatches to Convert

Viewing Your Swatches

• The dialog displays all document swatches (excluding [None] and [Registration]) in a three-column list: Column 1: Swatch nameColumn 2: Current swatch type (Global Color, Spot Color, Solid Color, Gradient, Pattern, etc.)Column 3: Parent group name (if the swatch belongs to a group)
• Column 1: Swatch name
• Column 2: Current swatch type (Global Color, Spot Color, Solid Color, Gradient, Pattern, etc.)
• Column 3: Parent group name (if the swatch belongs to a group)

ㅤ

Pre-selected Swatches

• If you have swatches selected in Illustrator's Swatches panel before running the script, they will automatically be selected in the dialog

ㅤ

Selecting Swatches Manually

• Single selection: Click on a swatch name
• Multiple selection: Hold Ctrl (Windows) or Cmd (Mac) while clicking multiple swatches
• Range selection: Click first swatch, then hold Shift and click last swatch

ㅤ

Using the Search Feature

1. Type in the search box at the top to filter swatches by name
2. The list updates in real-time as you type
3. Click the × button to clear the search and show all swatches

➋ Choose Conversion Type

Select one of the following radio button options:

ㅤ

Convert to Global Colors

• Purpose: Creates process colors that can be tinted while maintaining consistency
• Best for: Colors you want to use with varying opacity/tints throughout your design
• Note: Allows you to create lighter/darker versions while keeping the base color linked

ㅤ

Convert to Spot Colors

• Purpose: Creates special printing inks for precise color reproduction
• Best for: Brand colors, metallic inks, or colors requiring exact printing specifications
• Note: Typically used for colors that need to match specific Pantone or custom ink colors

ㅤ

Convert to Solid Colors

• Purpose: Creates regular process colors (non-global, non-spot)
• Best for: Standard colors that don't need special printing treatment
• Note: These are independent color instances with no special linking

ㅤ

Delete Selected Swatches

• Purpose: Removes unwanted swatches from your document
• Safety features: Protected system swatches (White, Black, [None], [Registration]) cannot be deletedConfirmation dialog prevents accidental deletionShows detailed results of the deletion process
• Protected system swatches (White, Black, [None], [Registration]) cannot be deleted
• Confirmation dialog prevents accidental deletion
• Shows detailed results of the deletion process

➌ Execute the Conversion

1. Click the OK button to proceed with your selected operation
2. Click Cancel to close the dialog without making changes

ㅤ

After processing, you'll see a completion dialog showing:

• Success count: Number of swatches successfully converted/deleted
• Skipped items: Gradient and pattern swatches that cannot be converted
• Errors: Any swatches that couldn't be processed
• Protected swatches: System swatches that were skipped during deletion

➍ Important Notes

Gradient and Pattern Swatch Limitations

• Gradient swatches and pattern swatches cannot be converted to Global or Spot colors
• These will be automatically skipped during conversion with a detailed explanation
• If you select only gradient/pattern swatches, you'll receive an informative alert

Swatch Group Preservation

• The script maintains swatch group memberships after conversion
• Converted swatches will remain in their original groups
• Group structure is preserved across all conversion types

ㅤ

☻ Tips for Best Results

1. Backup your work: Save your document before running mass conversions
2. Organize first: Group related swatches before conversion to maintain organization
3. Test small batches: Try converting a few swatches first to ensure desired results
4. Use search wisely: Filter by naming conventions to convert related swatches together
5. Check usage: Before deleting swatches, ensure they're not being used in your artwork
