Clipping Mask Manager

Clipping Mask Manager

Script for Adobe Illustrator

✦ Available exclusively on Patreon for Pro supporters.

ㅤ

Description

Clipping Mask Manager is a powerful Adobe Illustrator script that simplifies the management and manipulation of clipping masks in your artwork. Whether you need to release clipping masks, remove clipping paths, delete masked content, or merge clipping paths with their masked objects, this script provides an intuitive interface with multiple processing options.

The script automatically detects all clipping masks within your selection (including nested masks) and offers four different release modes, along with customizable styling options for the released mask paths. A built-in preview feature highlights all clipping paths before processing, making it easy to verify your selection.

ㅤ

Key Features

ㅤ

Four Processing Modes:

  • Release and keep clipping paths
  • Release and delete clipping paths
  • Delete masked content (keep only the mask path)
  • Merge clipping paths with masked content using Pathfinder

Customizable Styling:

  • Add fill color with adjustable opacity to released mask paths
  • Add stroke color to released mask paths
  • Interactive color pickers for easy color selection

Preview System:

  • Highlights all clipping paths with a dashed blue stroke
  • Toggle preview on/off to verify your selection
  • Automatic cleanup when processing or canceling

Smart Detection:

  • Automatically counts clipping masks in your selection
  • Works with nested clipping masks
  • Handles complex group structures

Additional Tools:

  • Zoom to fit selection in window
  • Hide/show edges toggle
  • Helpful tooltips for all options

ㅤ

Installation

1. Download the Circle Clipping Mask Manager.jsx script file.

2. Place the script in your Adobe Illustrator Scripts folder:

⮑ Mac: /Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts

⮑ Windows: C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts

3. Restart Adobe Illustrator if it's already running.

4. The script will appear in File > Scripts > Clipping Mask Manager.

5. Alternatively, you can run the script without installation by going to File > Scripts > Other Script... and selecting the file.

ㅤ

Using the Script

ㅤ

Prepare Your Selection

  1. Open your Adobe Illustrator document
  2. Select one or more objects that contain clipping masks
  • You can select individual clipped groups
  • You can select multiple objects at once
  • The script works with nested clipping masks

Note: If no clipping masks are found in your selection, the script will display an alert message.

➊ Run the Script

  1. Go to File > Scripts > Clipping Mask Manager

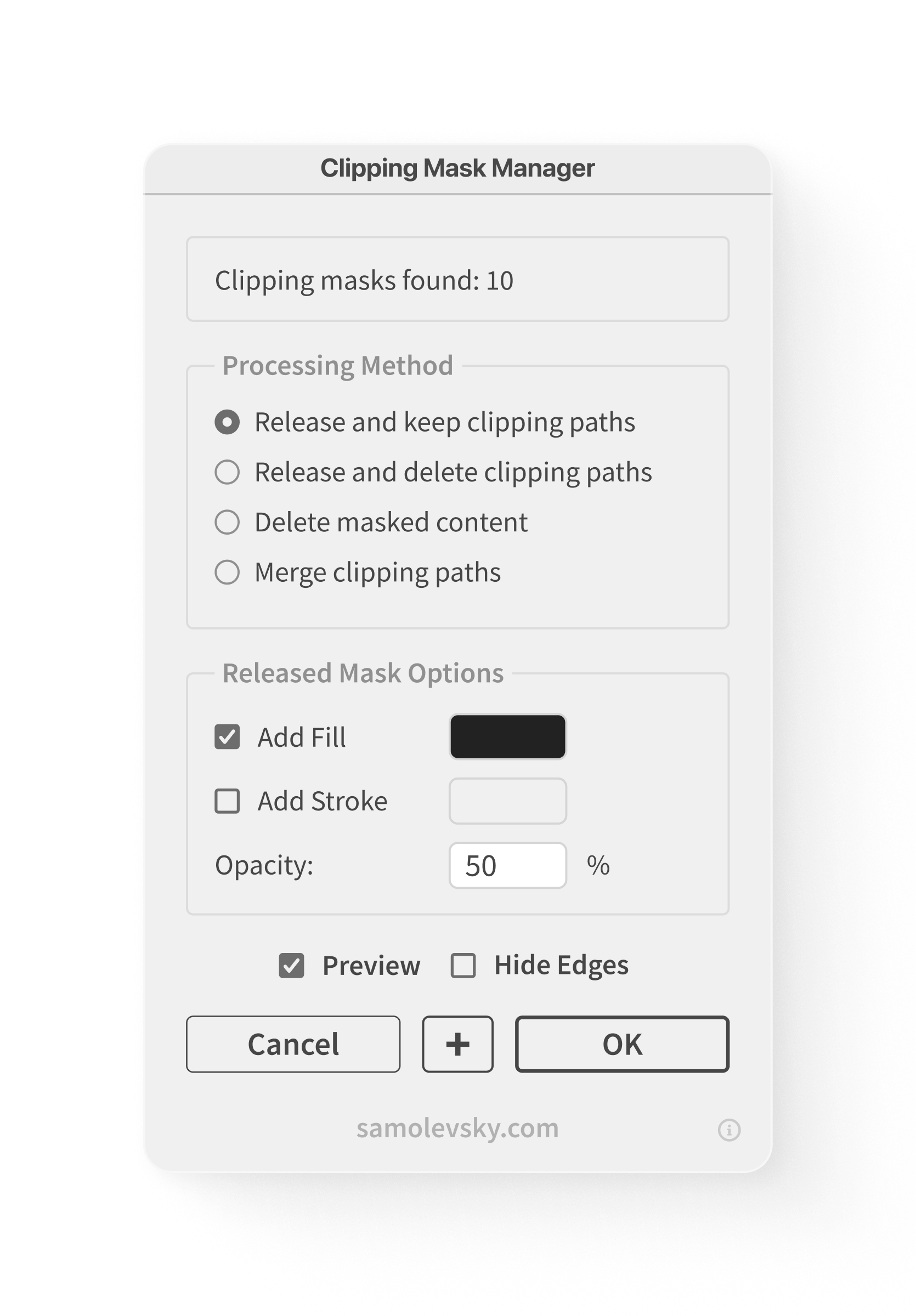

  2. The dialog window will open, showing:
  • The number of clipping masks found in your selection
  • Processing method options
  • Released mask styling options
  • Preview and control buttons

ㅤ

image gallery

ㅤ

➋ Choose a Processing Method

Select one of the four processing modes:

ㅤ

🅰 Release and keep clipping paths

  • Releases the clipping mask
  • Keeps all objects intact (both the mask path and masked content)
  • The mask path becomes a regular path that can be styled

ㅤ

🅱 Release and delete clipping paths

  • Releases the clipping mask
  • Removes the mask path
  • Keeps only the masked content
  • Note: Fill and stroke options are disabled in this mode

ㅤ

🅲 Delete masked content

  • Releases the clipping mask
  • Removes all masked objects
  • Keeps only the mask path
  • Useful when you only need the mask shape

ㅤ

 🅳 Merge clipping paths

  • Merges the clipping path with the masked content using Pathfinder Crop
  • Creates a single unified shape
  • Note: Linked images and gradient meshes may not merge correctly

➌ Configure Released Mask Options (Optional)

Add Fill

  1. Check the "Add Fill" checkbox (enabled by default)
  2. Click the color swatch to open the color picker
  3. Select your desired fill color (default: black)
  4. Set the opacity percentage (0-100%, default: 50%)

ㅤ

Add Stroke

  1. Check the "Add Stroke" checkbox
  2. Click the color swatch to open the color picker
  3. Select your desired stroke color
  4. The stroke width is set to 1pt by default

➍ Use Preview and Additional Tools

Preview

  • The "Preview" checkbox is enabled by default
  • When enabled, all clipping paths are highlighted with a dashed blue stroke
  • Toggle off to remove the preview highlights
  • Preview automatically clears when you apply changes or cancel

ㅤ

Hide Edges

  • Check "Hide Edges" to hide object edges/outlines in the document view
  • Useful for seeing your artwork without selection indicators
  • Uncheck to show edges again

 ➎ Apply or Cancel

  • Click OK to apply the selected processing method to all clipping masks
  • Click Cancel to close the dialog without making changes
  • Preview highlights are automatically cleared in both cases

ㅤ

Zoom Button ✚

  • Click the zoom button to fit your selection in the window
  • Automatically centers and scales the view to show all selected objects

Best Practices

  1. Use Preview: Always check the preview to ensure the script detected all the clipping masks you want to process
  2. Test First: Try the script on a copy of your artwork first to understand how each mode works
  3. Nested Masks: The script automatically processes nested clipping masks recursively
  4. Undo: You can always undo the operation with Cmd+Z (Mac) or Ctrl+Z (Windows)
  5. Merge Mode Preparation: Before using "Merge clipping paths" mode:
  • Expand any appearances or effects
  • Rasterize or expand placed images if needed
  • Convert text to outlines if necessary
  • The script will attempt to handle these automatically, but manual preparation gives better results

ㅤ

With Clipping Mask Manager, you have complete control over how clipping masks are handled in your Illustrator projects – whether you need to release, delete, merge, or restyle them.

ㅤ

ㅤ
