Color Channels Tweaker

Script for Adobe Illustrator

✦ Available exclusively on Patreon for Pro supporters.

ㅤ

Description

Color Channels Tweaker provides precise control over individual color channels in your Illustrator artwork. Whether you're working in RGB or CMYK color space, this script lets you fine-tune each channel independently using intuitive sliders with values ranging from 0% to 200%. Perfect for color correction, creative color effects, and batch color adjustments.

ㅤ

Features

Dual Color Mode Support: Automatically detects and works with both RGB and CMYK color spaces
Real-time Preview: See changes instantly as you adjust sliders
Individual Channel Control: Adjust each color channel independently (R, G, B or C, M, Y, K)
Flexible Range: Values from 0% to 200% for each channel (100% = original value)
Selective Application: Choose to apply changes to fills, strokes, or both
Global Color Handling: Option to skip or edit global swatches
Gradient Support: Automatically adjusts colors within gradients
Quick Reset: Reset individual channels to 100% with dedicated reset buttons
Keyboard Shortcuts: Use arrow keys for precise adjustments (Shift for 10% increments)
Zoom to Selection: Built-in zoom button to fit selection in view
Hide Edges Toggle: Option to hide object edges for better color preview

ㅤ

Installation

1. Download the Color Channels Tweaker.jsx script file.

2. Place the script in your Adobe Illustrator Scripts folder:

⮑ Mac: /Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts

⮑ Windows: C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts

3. Restart Adobe Illustrator if it's already running.

4. Alternatively, you can run the script directly via File > Scripts > Other Script... and browse to the file location; or just drag and drop the .jsx file onto your Illustrator document window.

ㅤ

Using the Script

Open an Illustrator document
Select one or more objects whose colors you want to adjust
Access the script via File > Scripts > Color Channels Tweaker.

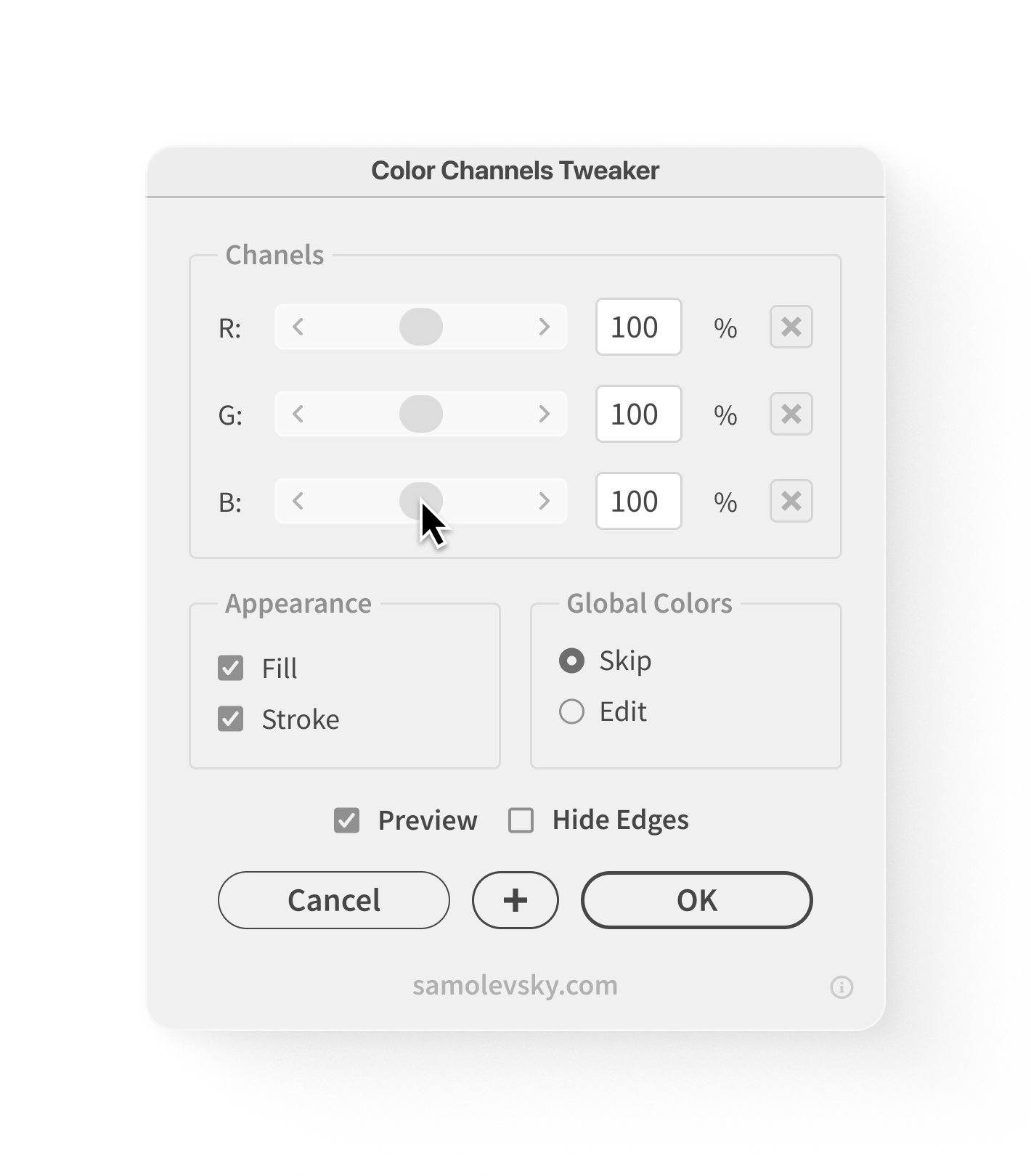

The dialog will display different sliders based on your document's color mode:

ㅤ

ㅤ

➊ Adjust Color Channels

For RGB Documents:

R (Red): Adjust red channel (0-200%)
G (Green): Adjust green channel (0-200%)
B (Blue): Adjust blue channel (0-200%)

ㅤ

For CMYK Documents:

C (Cyan): Adjust cyan channel (0-200%)
M (Magenta): Adjust magenta channel (0-200%)
Y (Yellow): Adjust yellow channel (0-200%)
K (Black): Adjust black channel (0-200%)

ㅤ

Adjustment Methods:

Drag the slider left or right
Type a value directly in the input field (0-200)
Use arrow keys: Up/Down for 1% increments, Shift+Up/Down for 10% increments
Right-click on a slider to reset it to 100%
Click the ✖ button next to a channel to reset it to 100%

➋ Configure Appearance Options

Fill: Check to apply changes to object fills
Stroke: Check to apply changes to object strokes
Uncheck either option to exclude it from adjustments

➌ Handle Global Colors

Skip: Don't modify global swatches (default)
Edit: Directly edit global swatches (affects all objects using those swatches)

➍ Use Preview Features

Preview: Toggle real-time preview on/off (enabled by default)
Hide Edges: Hide selection edges for better color visualization
Zoom Button (✚): Click to fit selection in the viewport

➎ Apply or Cancel

OK: Apply the color adjustments and close the dialog
Cancel: Discard changes and close the dialog
Keyboard shortcuts: Press Enter to apply, Esc to cancel

➌ Conclusion

Color Channels Tweaker gives you precise, real-time control over individual RGB or CMYK channels in your Illustrator artwork, making color correction and creative effects simple and intuitive.

With flexible adjustment ranges, gradient support, and convenient preview features, you can fine-tune colors across multiple objects simultaneously. Whether you're removing color casts, boosting specific channels, or creating unique color effects, this script streamlines your color workflow.

#Color

Color Channels Tweaker

Version: 1.0.4

Updated: February 6, 2026

Download Color Channels Tweaker

1.0.0 – Initial release.
1.0.1 – Fixed bug with adjusting gradient colors.
1.0.2 – Right-clicking the slider instantly resets the channel to 100%.
ㅤ
ㅤ
Tested on MacOS:
ㅤ
- Adobe Illustrator 2023 (27.0)
- Adobe Illustrator 2024 (28.1)
- Adobe Illustrator 2025 (29.0)
Supported Versions:
- Compatible with Adobe Illustrator CS6 and later, including Adobe Illustrator CC versions.
Operating Systems:
- Works on both macOS and Windows platforms.
