Smart Rotate

Smart Rotate

Script for Adobe Illustrator

ㅤ

Description

Smart Rotate is a powerful Adobe Illustrator script that provides an enhanced rotation interface with real-time preview capabilities. This script offers precision control over object rotation with an intuitive slider-based interface, multiple reference point options, and advanced features for handling grouped objects and compound paths.

ㅤ

Key Features

  • Interactive Angle Control: Dual input system with both slider and text input (range: -180° to 180°).
  • Real-time Preview: Live preview of rotation changes as you adjust settings.
  • 9-Point Reference System: Choose from 9 different reference points for rotation anchor.
  • Group Item Control: Option to rotate individual items within groups.
  • Compound Path Support: Rotate individual path items within compound paths.
  • Zoom to Selection: Built-in zoom feature to focus on selected objects.
  • Hide Edges Toggle: Option to hide object edges for cleaner preview.
  • Settings Persistence: Automatically saves and restores your preferred settings.

ㅤ

Installation

1. Download the Smart Rotate.jsx file.

2. Place it in your Adobe Illustrator Scripts folder:

⮑ Mac: /Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts

⮑ Windows: C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts

3. Restart Adobe Illustrator if it's already running.

ㅤ

Getting Started

  1. Open Adobe Illustrator and create or open a document.
  2. Select the objects you want to rotate (single objects, multiple objects, or groups).
  3. Run the script from File > Scripts > Smart Rotate.

ㅤ

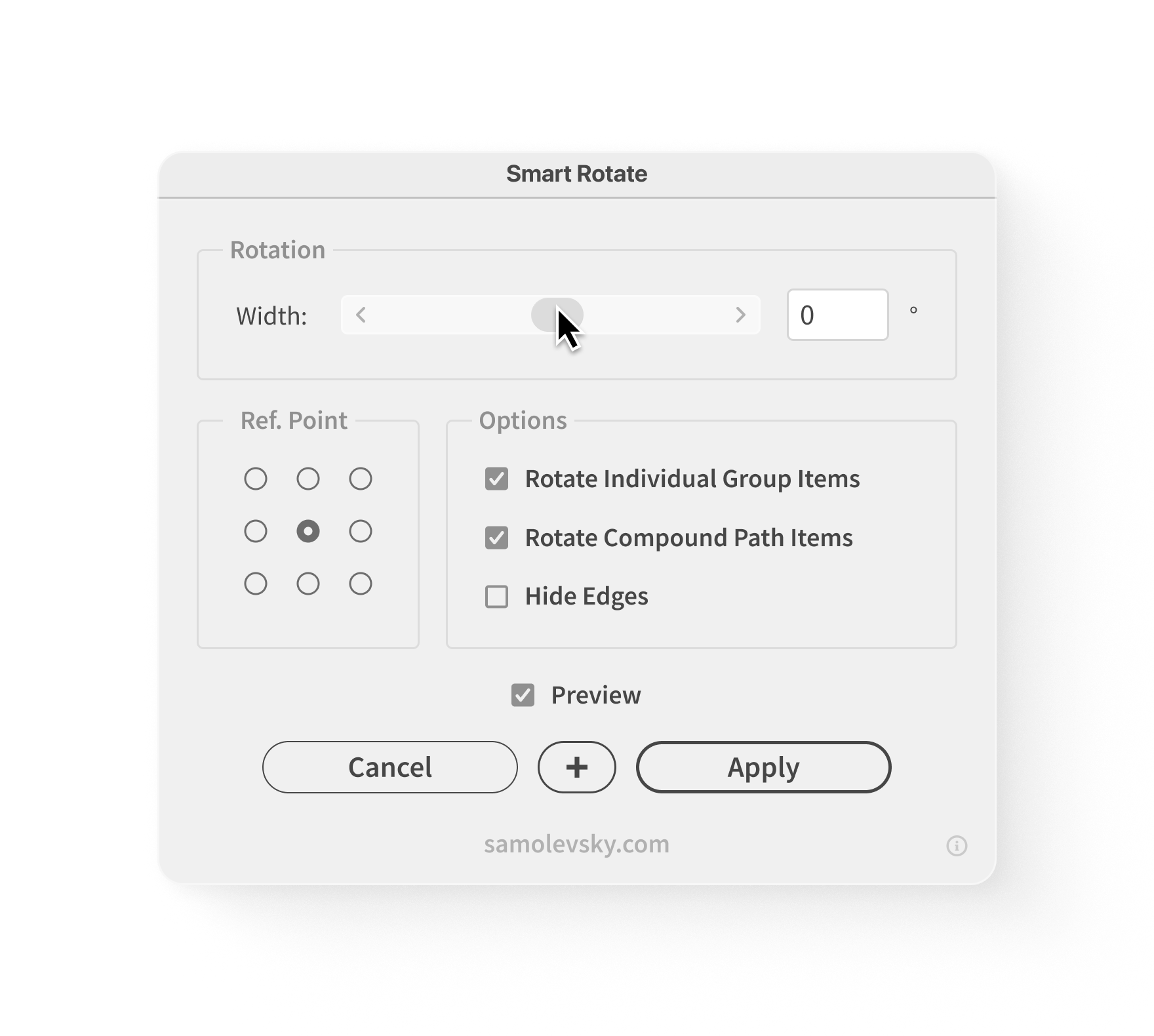

Using the Script

ㅤ

image gallery

ㅤ

ㅤ

➊ Setting the Rotation Angle

ㅤ

Method 1: Using the Slider

  • Drag the horizontal slider to adjust the angle from -180° to 180°.
  • The angle updates in real-time in the text field.
  • Small increments: Click the slider arrows (1° steps).
  • Large increments: Click in the slider bar (5° steps).

ㅤ

Method 2: Direct Text Input

  • Click in the angle input field and type your desired angle.
  • Press Enter to apply the value.
  • Use Up/Down arrow keys for fine adjustments (±1°).
  • Hold Shift + Up/Down arrows for larger adjustments (±10°).

ㅤ

ㅤ

➋ Choosing Reference Point

ㅤ

The reference point determines the pivot point for rotation:

  • Top Row: Top Left, Top Center, Top Right.
  • Middle Row: Middle Left, Center, Middle Right.
  • Bottom Row: Bottom Left, Bottom Center, Bottom Right.

ㅤ

To select a reference point:

  1. Click on any of the 9 radio buttons in the Reference Point panel.
  2. The selected point will be highlighted.
  3. Hover over buttons to see directional hints (arrows and symbols).

ㅤ

ㅤ

➌ Advanced Options

ㅤ

Rotate Individual Group Items

  • Check this box to rotate each item within groups separately.
  • When unchecked, groups rotate as a single unit.
  • Useful for creating complex rotation effects within grouped objects.

ㅤ

Rotate Compound Path Items

  • Check this box to rotate individual path items within compound paths.
  • When unchecked, compound paths rotate as a single unit.
  • Helpful for detailed control over complex path objects.

ㅤ

Preview

  • Toggle real-time preview on/off.
  • When enabled, changes are shown immediately as you adjust settings.
  • Disable for better performance with complex artwork.

ㅤ

Hide Edges

  • Toggle visibility of object edges/paths.
  • Useful for cleaner preview without distracting outlines.
  • Executes Illustrator's standard edge toggle command.

ㅤ

ㅤ

➍ Navigation and View Controls

ㅤ

Applying Changes

  1. Ensure "Preview" is checked.
  2. Adjust settings and see changes in real-time.
  3. Click "Apply" when satisfied with the result.

ㅤ

Cancel Operation

  • Click "Cancel" to exit without applying changes.
  • If preview was active, all changes will be automatically undone.

ㅤ

Zoom to Selection Button (✚)

  • Click to automatically zoom and center the view on selected objects.
  • Zoom level set to 85% for optimal viewing.
  • Helpful when working with small objects or detailed artwork.

ㅤ

User Guide: Available through the script's help icon (⏼).

ㅤ

ㅤ

☻ Conclusion

Smart Rotate transforms the way you work with object rotation in Adobe Illustrator by providing an intuitive, preview-driven interface that goes far beyond the standard transform tools.

With its combination of precise controls, real-time feedback, and advanced options for handling complex objects, this script streamlines your workflow whether you're making subtle adjustments or exploring bold creative rotations.

ㅤ

ㅤ

Leave a comment

Smart Rotate

Version: 1.0.0

Updated:

Download Smart Rotate

  • 1.0.0 – Initial release.

    ㅤ

    ㅤ

    Tested on MacOS:

    ㅤ

    • Adobe Illustrator 2023 (27.0)
    • Adobe Illustrator 2024 (28.1)
    • Adobe Illustrator 2025 (29.0)

  • Supported Versions:

    • Compatible with Adobe Illustrator CS6 and later, including Adobe Illustrator CC versions.

    Operating Systems:

    • Works on both macOS and Windows platforms.

  • End User License Agreement (EULA)

    Last Updated: 21.12.2024
