Selection to Gradient Swatch

Script for Adobe Illustrator

✦ Available exclusively on Patreon for Pro supporters.

ㅤ

Description

Selection to Gradient Swatch is a powerful tool that analyzes your selected objects in Adobe Illustrator and automatically generates a gradient swatch based on the colors found. The script offers extensive customization options including:

Extract colors from fills, strokes, or both
Control the order in which colors are extracted (top-to-bottom, left-to-right, randomized, etc.)
Remove duplicate colors for cleaner gradients
Reverse gradient direction
Choose between linear or radial gradient types
Live preview of the gradient before creation
Support for RGB, CMYK, Grayscale, and Spot colors

ㅤ

Installation

1. Download the Selection to Gradient Swatch.jsx script file.

2. Place the script in your Adobe Illustrator Scripts folder:

⮑ Mac: /Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts

⮑ Windows: C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts

3. Restart Adobe Illustrator if it's already running.

4. Alternatively, run it directly via File > Scripts > Other Script... and browse to the file location; or just drag and drop the Selection to Gradient Swatch.jsx file onto your Illustrator document window.

ㅤ

Using the Script

ㅤ

Select Your Objects

Select one or more objects in your Illustrator document that contain the colors you want to extract. The script works with:

Paths with fill colors
Paths with stroke colors
Text frames
Groups
Compound paths

Note: Make sure your selected objects have visible fill or stroke colors applied.

ㅤ

Run the Script

Go to File > Scripts > Selection to Gradient Swatch

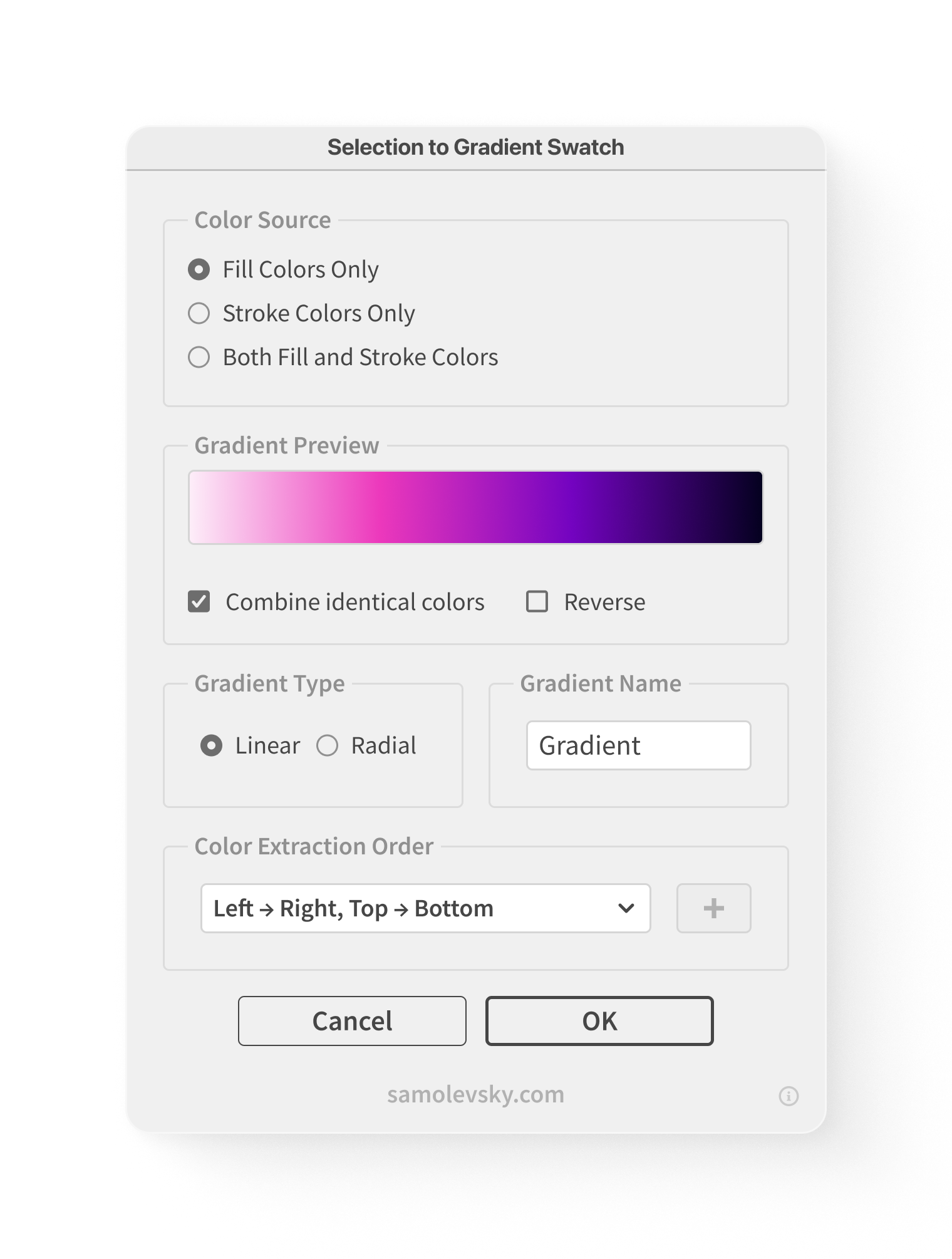

The script dialog will open with a live preview of your gradient:

ㅤ

➊ Choose Color Source

Select which colors to extract from your selection:

Fill Colors Only: Extract only fill colors from selected objects
Stroke Colors Only: Extract only stroke colors from selected objects
Both Fill and Stroke Colors: Extract colors from both fills and strokes

➋ Adjust Preview Options

Fine-tune your gradient with these options:

Combine identical colors: Remove duplicate colors from the gradient (checked by default)
Reverse: Flip the gradient direction horizontally

The preview panel shows a real-time visualization of your gradient as you adjust settings.

➌ Set Gradient Type

Choose the gradient style:

Linear: Creates a straight gradient transition
Radial: Creates a circular gradient transition

➍ Name Your Gradient

Enter a custom name for your gradient swatch, or leave it blank to auto-generate a name based on your settings (e.g., "Gradient").

If a gradient with the same name already exists, the script will automatically append a number to make it unique.

➎ Configure Extraction Order

Choose how colors should be ordered in the gradient:

Top → Bottom, Left → Right: Colors are extracted row by row, from top to bottom
Left → Right, Top → Bottom: Colors are extracted column by column, from left to right
Bottom → Top, Right → Left: Colors are extracted in reverse row order
Right → Left, Bottom → Top: Colors are extracted in reverse column order
Randomized: Colors are shuffled randomly (use the ✚ button to re-shuffle)

➏ Create the Gradient

Click OK to create the gradient swatch
Click Cancel to close the dialog without creating a gradient

The new gradient will be added to your Swatches panel and is ready to use!

ㅤ

Tips & Tricks

Color Palette to Gradient: Select multiple color swatches or objects arranged in your desired order to create a custom gradient
Artwork Sampling: Select artwork with interesting color combinations to extract a gradient that matches your design
Randomize for Variety: Use the Randomized order option and shuffle button to explore different color arrangements
Text Colors: The script can extract colors from text frames, making it easy to create gradients from typography
Spot Color Support: The script handles Spot colors and Global swatches, converting them appropriately for gradient use

☻ Wrap-up:

With Selection to Gradient Swatch, transforming your artwork's colors into custom gradients is just a few clicks away.

Experiment with different extraction orders, combine or separate colors, and preview your results in real-time before adding them to your Swatches panel.

Whether you're building cohesive color schemes or exploring creative color transitions, this script streamlines the process and puts full control in your hands.

ㅤ

#Color

Selection to Gradient Swatch

Version: 1.0.1

Updated: October 9, 2025

Download Selection to Gradient Swatch

1.0.0 – Initial release.
ㅤ
ㅤ
Tested on MacOS:
ㅤ
- Adobe Illustrator 2023 (27.0)
- Adobe Illustrator 2024 (28.1)
- Adobe Illustrator 2025 (29.0)
Supported Versions:
- Compatible with Adobe Illustrator CS6 and later, including Adobe Illustrator CC versions.
Operating Systems:
- Works on both macOS and Windows platforms.
