Select by Rotation Angle

Script for Adobe Illustrator

ㅤ

Overview

Select by Rotation Angle is an Adobe Illustrator script that helps you quickly select objects based on their rotation angle. This powerful tool allows you to filter objects within a specific range of rotation angles, making it ideal for complex designs where manual selection would be time-consuming.

ㅤ

Installation

Download the Script:
Save the Select by Rotation Angle.jsx file to your computer.
Place in Scripts Folder:

For Mac: Copy the file to
/Applications/Adobe Illustrator [Version]/Presets/<Language>/Scripts/

For Windows: Copy the file to
C:\Program Files\Adobe\Adobe Illustrator [Version]\Presets\<Language>\Scripts\
Restart Illustrator:
If Illustrator was running during installation, restart it to recognize the new script.

ㅤ

Using the Script

Launch the Script: Go to File > Scripts > Select by Rotation Angle

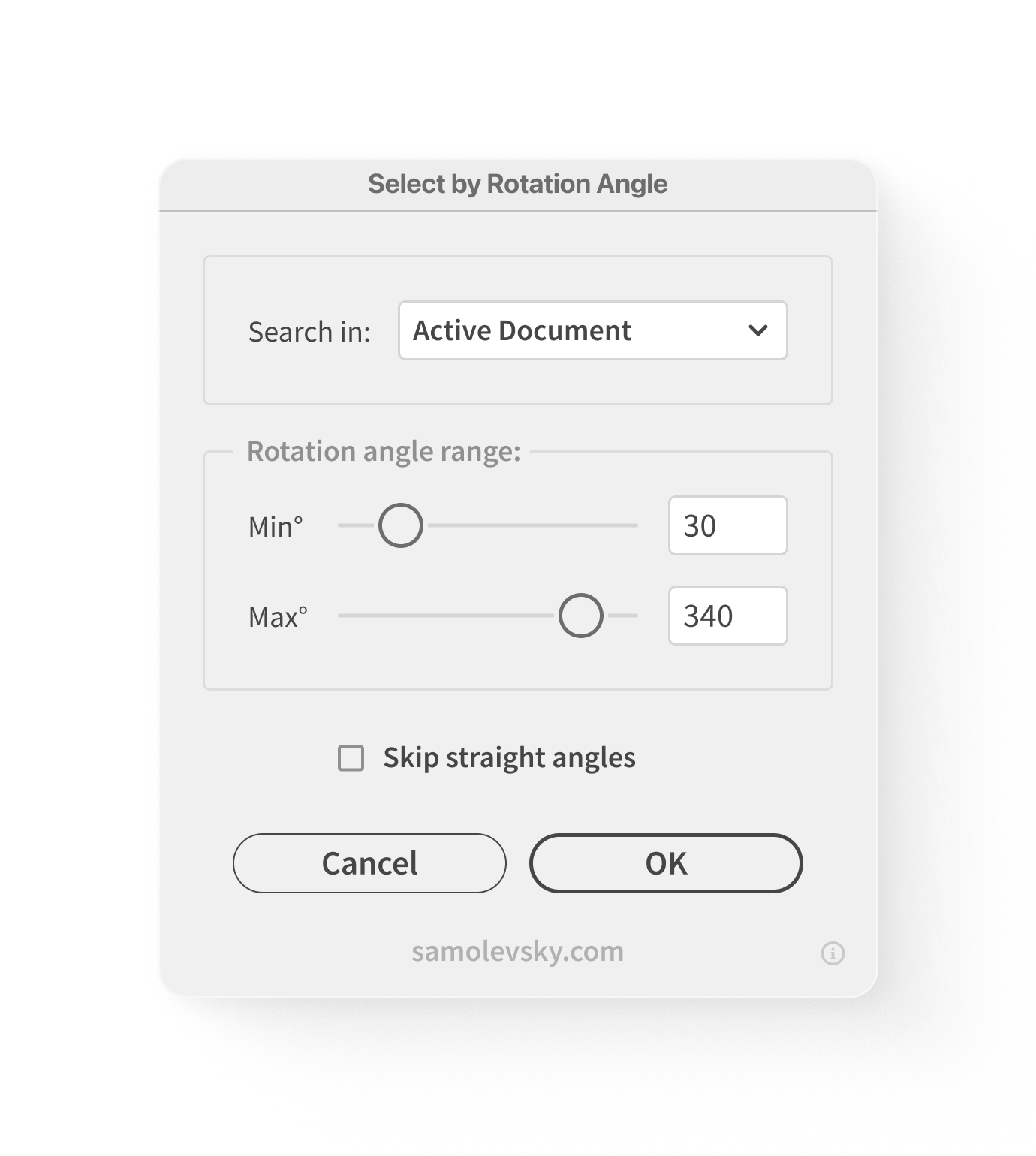

Configure Selection Settings: The dialog box offers the following options:

ㅤ

➊ Define the Search Scope

Choose the scope for your selection using the 'Search in:' dropdown menu:

ㅤ

Active Document: Search through all objects in the entire document.
Active Selection: Filter only among currently selected objects.
Active Layer: Search only in the active layer.
Active Artboard: Search only in the active artboard.

ㅤ

➋ Set the Rotation Angle Range

ㅤ

Rotation angle range: Set the minimum and maximum angles:

Set the minimum angle using the Min° slider or input field (0° to 360°).
Set the maximum angle using the Max° slider or input field (0° to 360°).
Use arrow keys in input fields to adjust values (hold Shift for 10° increments).

ㅤ

➌ Additional Options

ㅤ

Check "Skip straight angles" to exclude objects rotated at exactly 0°, 90°, 180°, 270°, or 360°.
Click the icon ⏼ in the bottom right corner to access the user guide.
Hover over elements for helpful tooltips.

ㅤ

➍ Run the Selection Process

ㅤ

Click "OK" to run the script.
A progress bar will appear for large documents.
Selected objects will be highlighted, and the view will auto-zoom to fit them.
A confirmation dialog will show how many objects were selected.

Additional Notes

The script works on visible and unlocked items only.
The precision of angle calculation may vary slightly depending on your Illustrator version.
It's recommended to save your complex documents before running the script to ensure all changes are securely backed up.

ㅤ

☻ Conclusion

ㅤ

The Select by Rotation Angle script is a powerful tool for designers who need precise control over object rotation in Adobe Illustrator. By filtering objects based on their angles, it streamlines workflows and enhances accuracy in design adjustments.

ㅤ

#Select

Select by Rotation Angle

Version: 1.0.0

Updated: February 18, 2025

Download Select by Rotation Angle

1.0.0 – Initial release.
ㅤ
ㅤ
Tested on MacOS:
ㅤ
- Adobe Illustrator 2023 (27.0)
- Adobe Illustrator 2024 (28.1)
- Adobe Illustrator 2025 (29.0)
Supported Versions:
- Compatible with Adobe Illustrator CS6 and later, including Adobe Illustrator CC versions.
Operating Systems:
- Works on both macOS and Windows platforms.
End User License Agreement (EULA)
Last Updated: 21.12.2024
ㅤ
This End User License Agreement (“Agreement”) is a legal agreement between you (“User” or “Licensee”) and Samolevsky.com (“Licensor”) regarding the use of the Adobe Illustrator scripts (“Software”). By downloading, installing, or using the Software, you agree to be bound by the terms of this Agreement.
ㅤ
1. Grant of License
Licensor grants the User a non-exclusive, non-transferable, and revocable license to use the Software in accordance with this Agreement.
- Free Software: If the Software is provided for free, you may use it for personal or commercial purposes without payment, subject to the restrictions outlined in this Agreement.
- Paid Software: If the Software is provided for a fee, you may use it only after payment has been made in full.
ㅤ
2. Usage Rights
You are permitted to:
- Install and use the Software on devices you own or control.
- Use the Software in your personal or commercial projects, subject to compliance with this Agreement.
ㅤ
3. Restrictions
You may NOT:
- Reverse engineer, decompile, or otherwise attempt to discover the source code, underlying ideas, or algorithms of the Software.
- Reuse, incorporate, or integrate any portion of the Software into any other software, product, or project, except as expressly permitted by the Licensor in writing.
- Resell, redistribute, or share the Software, whether in its original or modified form, without prior written consent from the Licensor.
- Claim ownership of the Software or its underlying code.
- Use the Software in any way that violates applicable laws or regulations.
ㅤ
4. Ownership
The Software and all intellectual property rights therein remain the exclusive property of the Licensor. This Agreement does not transfer ownership of the Software or any intellectual property rights to the User.
ㅤ
5. Disclaimer of Warranties
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT. IN NO EVENT SHALL THE LICENSOR BE LIABLE FOR ANY CLAIM, DAMAGES, OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT, OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
ㅤ
6. Limitation of Liability
To the maximum extent permitted by law, Licensor shall not be liable for any damages, including but not limited to direct, indirect, incidental, special, or consequential damages, arising out of or related to the use or inability to use the Software.
ㅤ
7. Termination
This Agreement is effective until terminated. Licensor may terminate this Agreement immediately if you breach any term of this Agreement. Upon termination, you must cease all use of the Software and destroy any copies in your possession.
ㅤ
8. Updates and Support
Licensor is not obligated to provide updates, support, or maintenance for the Software. However, updates may be provided at the sole discretion of the Licensor.
ㅤ
9. Governing Law
This Agreement shall be governed by and construed in accordance with the laws of the State of New York, without regard to its conflict of law principles.
ㅤ
10. Entire Agreement
This Agreement constitutes the entire agreement between you and the Licensor concerning the Software and supersedes all prior or contemporaneous understandings regarding such subject matter.
By using the Software, you acknowledge that you have read this Agreement, understand it, and agree to be bound by its terms.
ㅤ
For any questions or concerns regarding this Agreement, please contact us at hello@samolevsky.com

Required Software

Adobe Illustrator

Learn more

Adobe Illustrator is a professional vector graphics software developed by Adobe Inc. It is widely used by designers, illustrators, and artists for creating a variety of digital artwork, including logos, icons, illustrations, typography, and complex design layouts. Illustrator is known for its precision and scalability, allowing users to create high-quality graphics that can be resized without losing clarity. Its features include powerful drawing tools, customizable brushes, advanced typography options, and seamless integration with other Adobe Creative Cloud applications. Illustrator is a go-to tool for creative professionals working on projects for print, web, and multimedia platforms.

🅰 Locating the Scripts Folder
To install a Select by Rotation Angle.jsx script in Adobe Illustrator, you need to place it in the correct directory where Illustrator can recognize it. Follow these steps to locate the Scripts folder:
1. MacOS:
  Open Finder and navigate to:
  Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts.
2. Windows:
  Open File Explorer and navigate to:
  C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts
3. Replace <Version> with your Adobe Illustrator version (e.g., 2025).
4. Replace <Language> with your language folder (e.g., "de_DE" for German, "en_US" for English).
ㅤ
🅱 Installing the Script
1. Copy the Script File: Copy the Select by Rotation Angle.jsx file to the Scripts folder located in the path above.
2. On some systems, you may need administrator permissions to modify the Scripts folder.
3. Restart Adobe Illustrator: To refresh the scripts menu, close and reopen Adobe Illustrator.
ㅤ
Explore our complete guide to mastering Adobe Illustrator scripts.
1. Open Adobe Illustrator and ensure a document is active.
2. Go to the top menu bar and select File > Scripts.
3. If the script is installed in the Scripts folder, it will appear in the dropdown list.
4. Click the Select by Rotation Angle script to run it.
5. The Select by Rotation Angle script will execute, and any dialog boxes or results will appear based on the script’s functionality.
☻ Before running any scripts, it’s strongly advised to save your work — especially when working with complex or large documents.

🅰 Locating the Scripts Folder
To install a Select by Rotation Angle.jsx script in Adobe Illustrator, you need to place it in the correct directory where Illustrator can recognize it. Follow these steps to locate the Scripts folder:
1. MacOS:
  Open Finder and navigate to:
  Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts.
2. Windows:
  Open File Explorer and navigate to:
  C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts
3. Replace <Version> with your Adobe Illustrator version (e.g., 2025).
4. Replace <Language> with your language folder (e.g., "de_DE" for German, "en_US" for English).
ㅤ
🅱 Installing the Script
1. Copy the Script File: Copy the Select by Rotation Angle.jsx file to the Scripts folder located in the path above.
2. On some systems, you may need administrator permissions to modify the Scripts folder.
3. Restart Adobe Illustrator: To refresh the scripts menu, close and reopen Adobe Illustrator.
ㅤ
Explore our complete guide to mastering Adobe Illustrator scripts.

1. Open Adobe Illustrator and ensure a document is active.
2. Go to the top menu bar and select File > Scripts.
3. If the script is installed in the Scripts folder, it will appear in the dropdown list.
4. Click the Select by Rotation Angle script to run it.
5. The Select by Rotation Angle script will execute, and any dialog boxes or results will appear based on the script’s functionality.
☻ Before running any scripts, it’s strongly advised to save your work — especially when working with complex or large documents.
