Random Rotate

Script for Adobe Illustrator

✦ Available exclusively on Patreon for Pro supporters.

ㅤ

Description

The Random Rotate script is a powerful Adobe Illustrator tool that applies random rotation transformations to selected objects within customizable angle ranges. This script is perfect for creating organic, scattered effects, breaking up rigid layouts, or adding natural variation to repeated elements in your designs.

ㅤ

Key Features

Customizable Angle Range: Set minimum and maximum rotation angles (0° to 360°).
Step Increments: Control rotation precision with adjustable step values.
Reference Point Selection: Choose from 9 different rotation anchor points.
Group Handling: Option to rotate individual items within groups.
Compound Path Support: Rotate individual path items within compound paths.
Live Preview: See changes in real-time as you adjust settings.
Settings Persistence: Saves your preferences between sessions.

ㅤ

Installation

1. Download the Random Rotate.jsx script file.

2. Place the script in your Adobe Illustrator Scripts folder:

⮑ Mac: /Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts

⮑ Windows: C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts

3. Restart Adobe Illustrator if it's already running.

ㅤ

Using the Script

Open a document with objects to rotate.
Select one or more objects you want to randomly rotate.
Run the script via File > Scripts > Random Rotate.

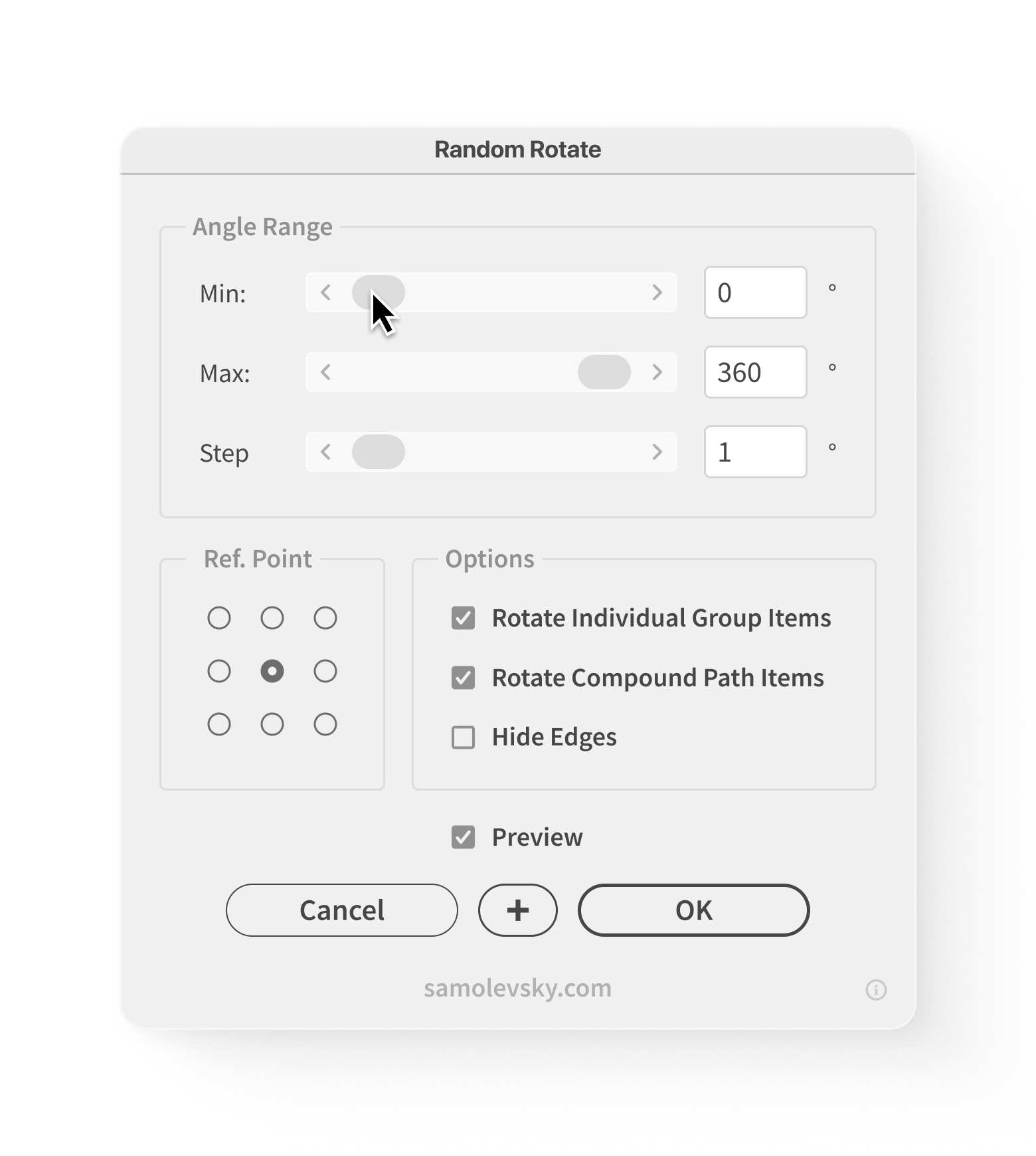

A dialog window will appear with multiple options:

ㅤ

ㅤ

➊ Basic Angle Setup

ㅤ

Minimum Angle:

Use the slider or input field to set the smallest rotation angle.
Range: 0° to 360°.
Default: 0°.

ㅤ

Maximum Angle:

Set the largest possible rotation angle.
Must be greater than or equal to minimum angle.
Default: 360°.

ㅤ

Step Angle:

Controls the increment between possible rotation values.
Example: Step of 45° will only allow rotations at 0°, 45°, 90°, 135°, etc.
Default: 1°.

ㅤ

A: Original Selection; B: Range: 0° to 360°, Step of 1°; C: Step of 90°

ㅤ

Input Field Controls

Up/Down Arrow Keys: Adjust values by ±1°.
Shift + Up/Down: Adjust values by ±10°.
Direct text entry supported in all input fields.

ㅤ

➋ Reference Point Selection

Choose where each object rotates around by clicking one of the 9 reference points:

Top Row: Top Left, Top Center, Top Right.
Middle Row: Middle Left, Center, Middle Right.
Bottom Row: Bottom Left, Bottom Center, Bottom Right.

The center point rotates objects around their center, while corner/edge points create more dramatic movement effects.

ㅤ

➌ Advanced Options

Rotate Individual Group Items

Checked: Each item within groups rotates individually.
Unchecked: Entire groups rotate as single units.

ㅤ

Rotate Compound Path Items

Checked: Individual paths within compound paths rotate separately.
Unchecked: Compound paths rotate as complete objects.

ㅤ

Hide Edges

Toggle visibility of object outlines/paths for cleaner preview.

ㅤ

➍ Preview and Apply

Preview Checkbox:

Enabled: See changes in real-time as you adjust settings.
Updates automatically when you modify any parameter.

ㅤ

Randomize Button (✚):

Generates new random rotations within your current range.
Creates different variations without changing settings.

ㅤ

Apply Changes:

OK: Apply rotations and close the dialog.
Cancel: Close without applying changes.
⏼: Provides access to user guide information.

ㅤ

Workflow Tips

Start Small: Begin with narrow angle ranges (e.g., -15° to +15°) for subtle effects.
Use Preview: Always enable preview to see immediate results.
Save Iterations: Use the randomize button to explore different variations.
Group Strategy: Decide whether to rotate groups as units or individual items based on your design needs.
Reference Points: Experiment with different reference points for varied effects.
Subtle Variation: Use 5-10° ranges for realistic imperfection.
Dynamic Scattering: Use full 360° range with center reference point.
Controlled Chaos: Use step increments (45°, 90°) for structured randomness.

ㅤ

☻ Summary

The Random Rotate script transforms rigid, mechanical layouts into organic, natural-looking designs by applying controlled random rotations to your selected objects.

With its intuitive interface, live preview, and powerful customization options, you can quickly add professional-quality variation to any design element.

Whether you're creating subtle imperfections or dramatic scattered effects, this tool puts precise creative control at your fingertips.

ㅤ

Random Rotate

Version: 1.0.0

Updated: July 22, 2025

Download Random Rotate

1.0.0 – Initial release.
ㅤ
ㅤ
Tested on MacOS:
ㅤ
- Adobe Illustrator 2023 (27.0)
- Adobe Illustrator 2024 (28.1)
- Adobe Illustrator 2025 (29.0)
Supported Versions:
- Compatible with Adobe Illustrator CS6 and later, including Adobe Illustrator CC versions.
Operating Systems:
- Works on both macOS and Windows platforms.
