Multi-Artboard Duplicator

Multi-Artboard Duplicator

Script for Adobe Illustrator



Description

Multi-Artboard Duplicator is an Adobe Illustrator script that allows users to duplicate existing artboards along with their content in various layout configurations. This powerful tool helps streamline workflow by creating multiple copies of artboards with precise spacing and arrangement options.



Features

  • Duplicate multiple artboards at once with all their content.
  • Choose from five layout options: Right, Left, Down, Up, or Grid.
  • Customize spacing between duplicate sets.
  • Grid layout option with adjustable column count.
  • Live preview functionality to visualize results before applying.
  • User-friendly interface with scrollbars for easier value adjustments.



Installation

1. Download the Multi-Artboard Duplicator.jsx script file.

2. Place the script in your Adobe Illustrator Scripts folder:

⮑ Mac: /Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts

⮑ Windows: C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts

3. Restart Adobe Illustrator if it's already running.



Using the Script

  • Open your Illustrator document containing the artboards you want to duplicate
  • Go to File > Scripts > Multi-Artboard Duplicator to run the script.

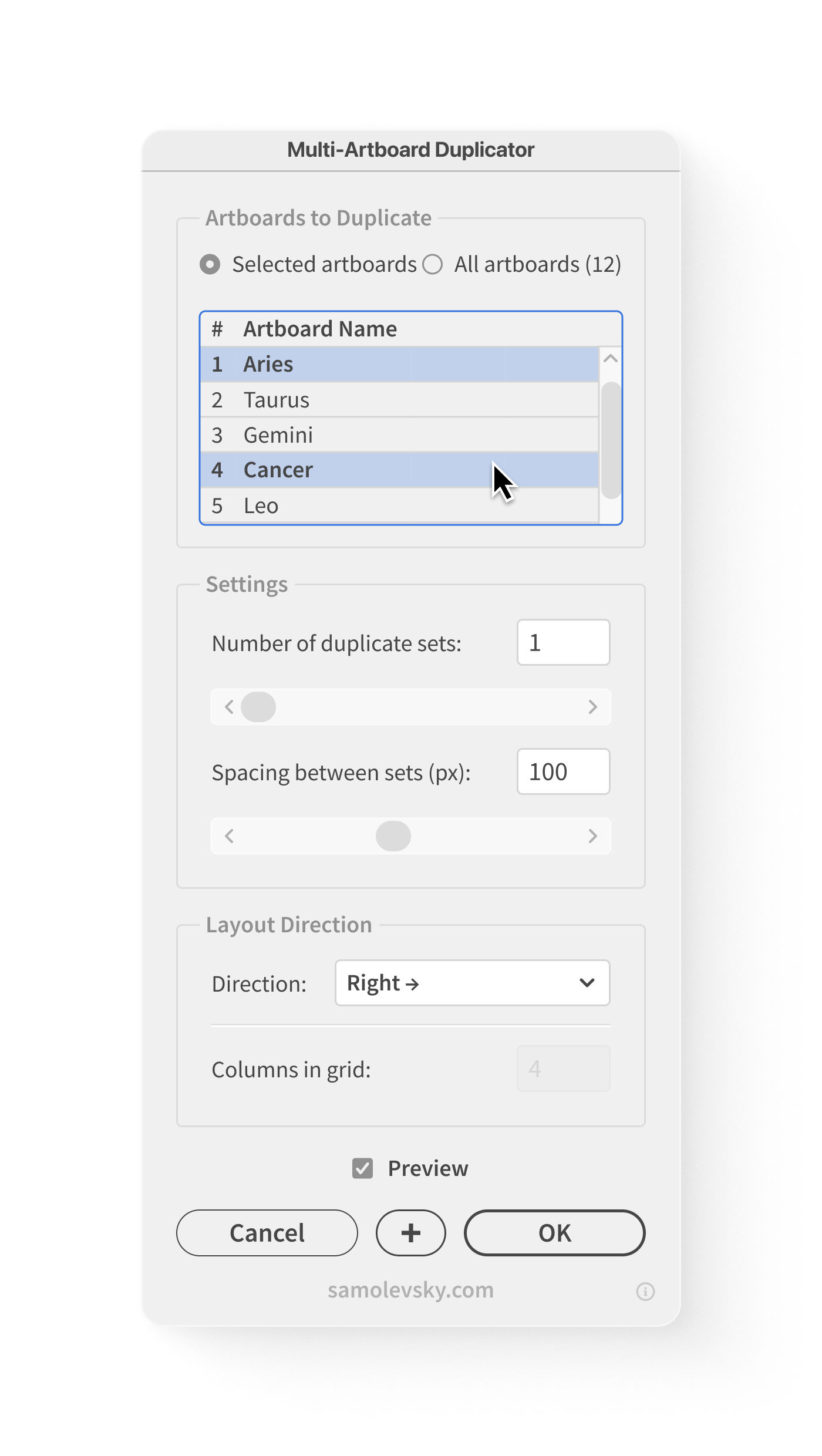

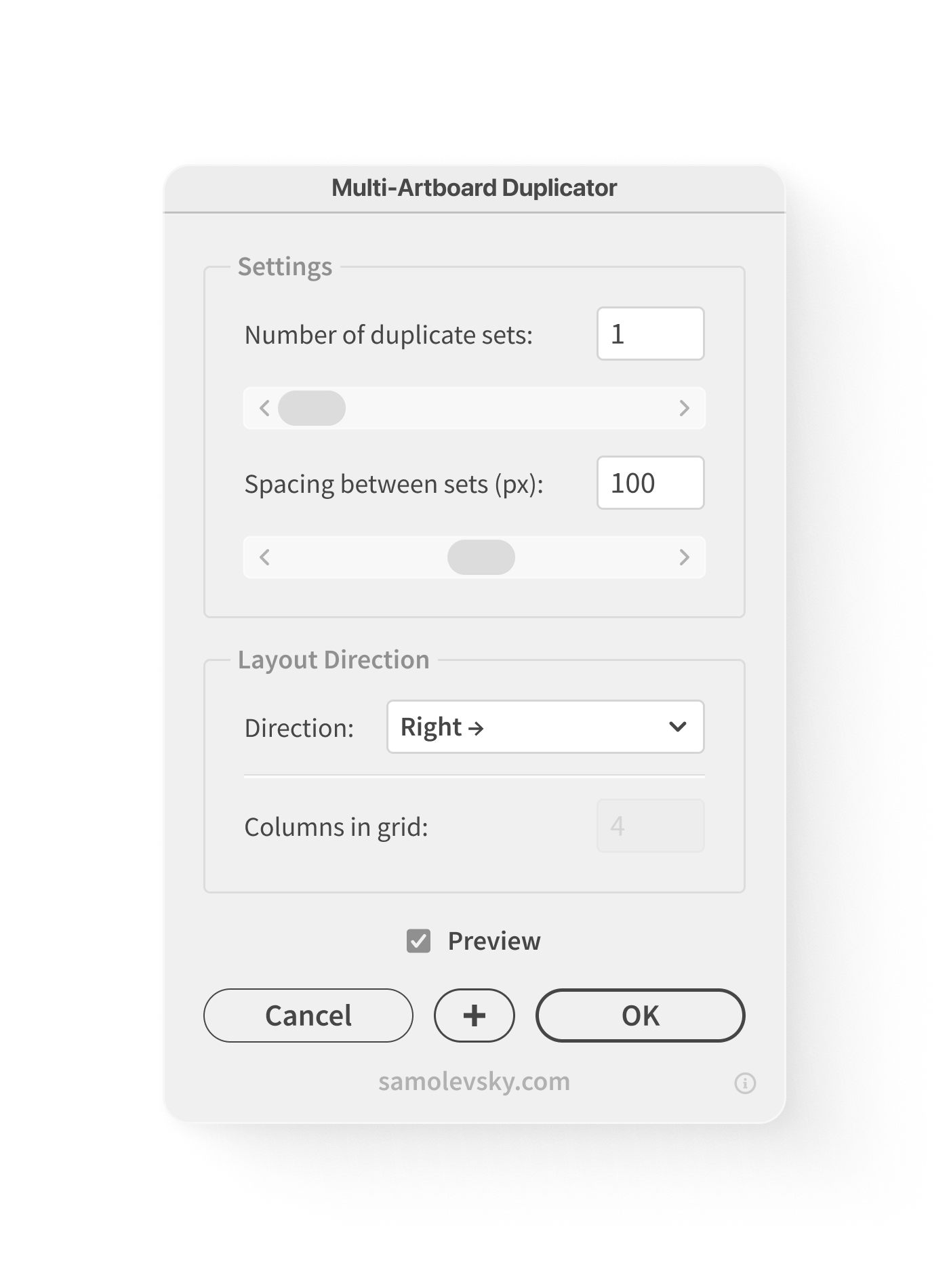

  • The Multi-Artboard Duplicator dialog will appear with folowing options.



➊ Duplication Settings:



Number of duplicate sets: Set how many copies of your artboards you want.

Spacing between sets: Set the distance between duplicate sets in pixels.

  • Use the scrollbar or type directly in the input field.
  • Use up/down arrow keys for quick adjustments (hold Shift for larger increments).





➋ Layout Direction:



Select your preferred layout direction from the dropdown:

  • Right: Duplicates will be arranged to the right of the original artboards.
  • Left: Duplicates will be arranged to the left of the original artboards.
  • Down: Duplicates will be arranged below the original artboards.
  • Up: Duplicates will be arranged above the original artboards.
  • Grid: Duplicates will be arranged in a grid pattern.



If you select Grid, specify:

  • Columns in grid: Set how many columns the grid should have.
  • Use the scrollbar or directly input a number.
  • Note: Grid layout requires at least 2 duplicate sets.





➌ Creating Duplicates:



  • Configure your settings as desired.
  • Enable Preview to check how your duplicates will appear.
  • Click OK to create the duplicate artboards and their contents.
  • You'll see a confirmation message once the duplicates are successfully created.



Preview Option:

  • Check the Preview checkbox to see how your duplicates will look before creating them.
  • Uncheck to remove the preview.



Action Buttons:

  • OK: Applies your settings and creates the duplicate artboards.
  • ✚: Adjusts the view to show all artboards at once.
  • Cancel: Closes the dialog without making any changes.
  • ⏼: Provides access to user guide information.




➍ Additional Tips



  • The script automatically validates if your duplicates would exceed canvas boundaries.
  • For grid layouts, adjust both the number of columns and total duplicates for different arrangements.
  • For quick iteration, use the Preview feature to test different spacing and layouts before committing.
  • The script adds numbers to the duplicate artboard names for easy identification.




☻ Conclusion

The Multi-Artboard Duplicator script streamlines your Adobe Illustrator workflow by providing an efficient way to duplicate artboards with precision and flexibility. Whether you're creating design variations, organizing content, or exploring different ideas, this tool helps you save time and maintain consistency across your project.

By offering intuitive controls for spacing, direction, and layout, along with the valuable preview function, the script enables you to visualize your duplicates before committing to changes. This makes it particularly useful for complex projects requiring multiple artboard iterations.





Leave a comment

Multi-Artboard Duplicator

Version: 1.0.0

Updated:

Download Multi-Artboard Duplicator

  • 1.0.0 – Initial release.

    ㅤ

    ㅤ

    Tested on MacOS:

    ㅤ

    Adobe Illustrator 2023 (27.0)

    Adobe Illustrator 2024 (28.1)

    Adobe Illustrator 2025 (29.0)

  • Supported Versions:

    • Compatible with Adobe Illustrator CS6 and later, including Adobe Illustrator CC versions.

    Operating Systems:

    • Works on both macOS and Windows platforms.

  • End User License Agreement (EULA)

    Last Updated: 21.12.2024

    ㅤ

    This End User License Agreement (“Agreement”) is a legal agreement between you (“User” or “Licensee”) and Samolevsky.com (“Licensor”) regarding the use of the Adobe Illustrator scripts (“Software”). By downloading, installing, or using the Software, you agree to be bound by the terms of this Agreement.

    ㅤ

    1. Grant of License

    Licensor grants the User a non-exclusive, non-transferable, and revocable license to use the Software in accordance with this Agreement.

    • Free Software: If the Software is provided for free, you may use it for personal or commercial purposes without payment, subject to the restrictions outlined in this Agreement.
    • Paid Software: If the Software is provided for a fee, you may use it only after payment has been made in full.

    ㅤ

    2. Usage Rights

    You are permitted to:

    • Install and use the Software on devices you own or control.
    • Use the Software in your personal or commercial projects, subject to compliance with this Agreement.

    ㅤ

    3. Restrictions

    You may NOT:

    • Reverse engineer, decompile, or otherwise attempt to discover the source code, underlying ideas, or algorithms of the Software.
    • Reuse, incorporate, or integrate any portion of the Software into any other software, product, or project, except as expressly permitted by the Licensor in writing.
    • Resell, redistribute, or share the Software, whether in its original or modified form, without prior written consent from the Licensor.
    • Claim ownership of the Software or its underlying code.
    • Use the Software in any way that violates applicable laws or regulations.

    ㅤ

    4. Ownership

    The Software and all intellectual property rights therein remain the exclusive property of the Licensor. This Agreement does not transfer ownership of the Software or any intellectual property rights to the User.

    ㅤ

    5. Disclaimer of Warranties

    THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT. IN NO EVENT SHALL THE LICENSOR BE LIABLE FOR ANY CLAIM, DAMAGES, OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT, OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

    ㅤ

    6. Limitation of Liability

    To the maximum extent permitted by law, Licensor shall not be liable for any damages, including but not limited to direct, indirect, incidental, special, or consequential damages, arising out of or related to the use or inability to use the Software.

    ㅤ

    7. Termination

    This Agreement is effective until terminated. Licensor may terminate this Agreement immediately if you breach any term of this Agreement. Upon termination, you must cease all use of the Software and destroy any copies in your possession.

    ㅤ

    8. Updates and Support

    Licensor is not obligated to provide updates, support, or maintenance for the Software. However, updates may be provided at the sole discretion of the Licensor.

    ㅤ

    9. Governing Law

    This Agreement shall be governed by and construed in accordance with the laws of the State of New York, without regard to its conflict of law principles.

    ㅤ

    10. Entire Agreement

    This Agreement constitutes the entire agreement between you and the Licensor concerning the Software and supersedes all prior or contemporaneous understandings regarding such subject matter.

    By using the Software, you acknowledge that you have read this Agreement, understand it, and agree to be bound by its terms.

    ㅤ

    For any questions or concerns regarding this Agreement, please contact us at hello@samolevsky.com

Required Software

Adobe Illustrator

Learn more

Adobe Illustrator is a professional vector graphics software developed by Adobe Inc. It is widely used by designers, illustrators, and artists for creating a variety of digital artwork, including logos, icons, illustrations, typography, and complex design layouts. Illustrator is known for its precision and scalability, allowing users to create high-quality graphics that can be resized without losing clarity. Its features include powerful drawing tools, customizable brushes, advanced typography options, and seamless integration with other Adobe Creative Cloud applications. Illustrator is a go-to tool for creative professionals working on projects for print, web, and multimedia platforms.

  • 🅰 Locating the Scripts Folder

    To install a Multi-Artboard Duplicator.jsx script in Adobe Illustrator, you need to place it in the correct directory where Illustrator
can recognize it. Follow these steps to locate the Scripts folder:

    1. MacOS:
      Open Finder and navigate to:
      Applications/Adobe Illustrator <Version>/Presets/<Language>/Scripts
    2. Windows:
      Open File Explorer and navigate to:
      C:\Program Files\Adobe\Adobe Illustrator <Version>\Presets\<Language>\Scripts
    3. Replace <Version> with your Adobe Illustrator version (e.g., 2025).
    4. Replace <Language> with your language folder (e.g., "de_DE" for German, "en_US" for English).

    ㅤ

    🅱 Installing the Script

    1. Copy the Script File: Copy the Multi-Artboard Duplicator.jsx file to the Scripts folder located in the path above.
    2. On some systems, you may need administrator permissions to modify the Scripts folder.
    3. Restart Adobe Illustrator: To refresh the scripts menu, close and reopen Adobe Illustrator.

    ㅤ

    Explore our complete guide to mastering Adobe Illustrator scripts.

    1. Open Adobe Illustrator and ensure a document is active.
    2. Go to the top menu bar and select File > Scripts.
    3. If the script is installed in the Scripts folder, it will appear in the dropdown list.
    4. Click the Multi-Artboard Duplicator script to run it.
    5. The Multi-Artboard Duplicator script will execute, and any dialog boxes or results will appear based on the script’s functionality.

    ☻ Before running any scripts, it’s strongly advised to save your work — especially when working with complex or large documents.
